1. Connection tube
2. Nut
3. O -ring
4. Bottom stop shaft
5. Floater
6. Cone tube
7. Scale
8. Top stop shaft
|
|
|
Caliber
mm
|
Dimensions mm
|
|
L
|
B1
|
B2
|
|
15
|
280
|
φ20
|
φ 45
|
|
25
|
380
|
φ32
|
φ68
|
|
32
|
288
|
φ40
|
φ74
|
|
50
|
341
|
φ63
|
φ98
|
|
65
|
430
|
φ75
|
φ122
|

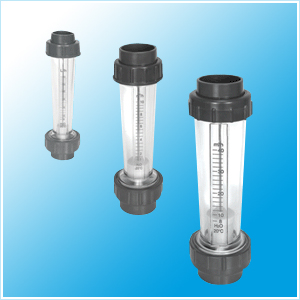

Remarks: The material of upper and lower connection tube of this
series flowmeter is ABS engineering plastic.
(also can be made for different material or connection form
according to the request of the customers)
|
