You are here： Home-> products show-> Flowmeter->LZT Series Panel (Piping) Type Flowmeter
  Products

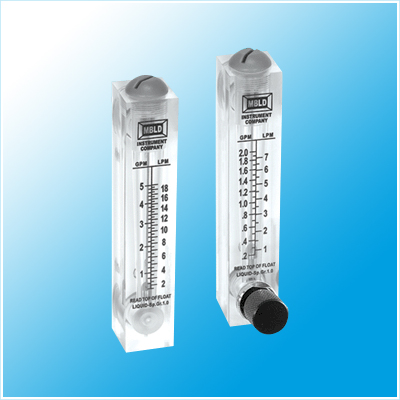

LZT-10  PANEL TYPE FLOWMETER

Model Measuringrange Medium Remarks
LZT-1001M 0.1~1GPM/0.5~4LPM Water Without Valve
LZT-1002M 0.2~2GPM/1~7LPM
LZT-1005M 0.5~5GPM/2~18LPM
LZT-1001M-V 0.1~1GPM/0.5~4LPM
LZT-1002M-V 0.2~2GPM/1~7LPM With valve
LZT-1005M-V 0.5~5GPM/2~18LPM
LZT-10A04M 0.4~4SCFM/12~120LPM Air
LZT-10A08M 0.8~8SCFM/24~240LPM Without Valve
LZT-10A16M 1.6~16SCFM/48~480LPM
LZT-10A24M 2.4~24SCFM/72~720LPM
LZT-10A04M-V 0.4~4SCFM/12~120LPM With valve
LZT-10A08M-V 0.8~8SCFM/24~240LPM
LZT-10A16M-V 1.6~16SCFM/48~480LPM
LZT-10A24M-V 2.4~24SCFM/72~720LPM

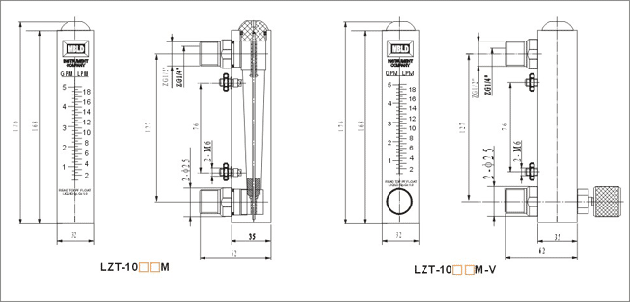

Dimensions                                                                                                                    mm
