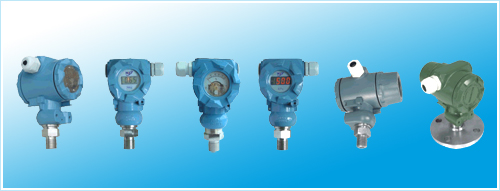

SUMMARY

PB8100 series silicon pressure transmitters are practically industrial pressure transmitters,which use the sensor elements whth high accuracy,stability and reliability.The products are the scene remote measurement metres that measure the pressure of the lipuid or gas or the level of the lipuid,the change into standard electric signal.

SCOPE OF APPLICATION

■ Process pressure control
■ Spaceflight area
■ Petroleum and chemical industry
■ Light industry
■ Medical instrumentation
■ Navigation shipbuilding
■ Power station
■ Water supply system with constant pressure
■ Other Auto-control and measuring system

CHARCTERISTICS

■ Wide range:-0.1MPa～0，0～（10KPa up to 40MPa)
■ Zero and range adjustable
■ Reverse polarity and limit protection
■ Extensive and convenient
■ High accuracy,stability and reliability

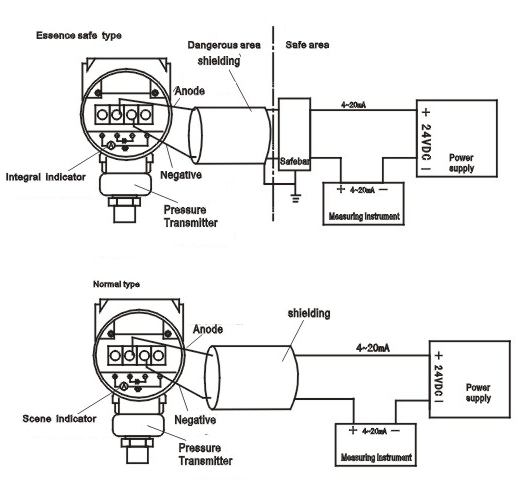

■ Essence safe type
■ IP65,be suitable for outdoor installation

TECHNICAL PARAMETER

■ Accuracy:0.25%F·S
■ Measuring Range:-0.1MPa～0,0～(10KPa up to 40MPa)
■ Linear:Superior to 0.2%F·S
■ Temperature effect:<±0.025%F·S/℃(0～50℃)
■ Stability:superior to 0.2%F·S/year
■ Response time:≤10ms
■ Power supply:24VDC (or 12～36VDC)
■ Output:4～20mA(or 0～10mA,1～5V,0～5V,0～10V)
■ Load:0～600Ω(Rz=(U-12)/0.02)
           0～1200Ω(to 0～10mA)
■ Overload limit:1.5×full scale
■ Ambient Temp:-20～+85℃
■ Medium Temp:-20～+85℃
■ Storing Temp:-20～+125℃
■ Process connection:M20×1.5 or 1/2NPT
■ Electric connection:M20×1.5
■ Mounting position effect:unrestricted
■ Degrees of protection:IP65
■ Explosion-proof grade:Exia ll CT4
■ Connection material:1cr18Ni9Ti
■ Diaphragm material:316L stainless steel
■ Housing material:aluminium
■ Weight:about 850g
■ Power Consume:<0.5W
