Summary

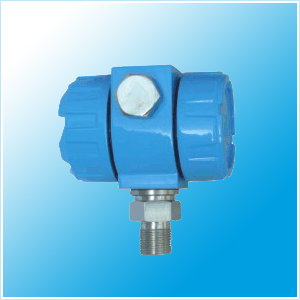

pb8200 series silicon presure transmitters use the sensor elements wih high accuracy,stability and reliability and measure the pressure of the liquid or gas or the level of the liquid,then change into 4～20mA electric signal.

Scope of application:

■ Process pressure control
■ Spaceflight area
■ Petroleum and chemical industry
■ Light industry
■ Medical instrumentation
■ Navigation shipbuilding
■ Power station
■ Water supply system with constant pressure
■ Other Auto-control and measuring system

Characteristics:

■ Wide Range:-0.1MPa～0,0～(10KPa up to 40MPa)
■ Zero and range adjustable
■ Reverse polarity and limit protection
■ Lightning strike protection
■ Small,light,fix easily,high performance-cost
■ High accuacy,stability and reliability
■ Be sritable for outdoor installation

Technical parameter

■ Accuracy:0.25%F·S ,0.5%F·S
■ Measureing Range:-0.1MPa～0,0～(10KPa up to 40MPa)
■ Linear:Superior to0.2%F·S
■ Temperature Effect:<±0.025%F·S/℃
■ Stability:≤0.2%F·S/year
■ Response time:≤10mS
■ Power supply：24VCD
■ Output：4～20mA(or1～5V)
■ Load：0～600Ω
■ Overload limit:1.5×full scale
■ Ambient Temp:-20～+85℃
■ Medium temp:-20～+85℃
■ Storing Temp:-20～+125℃
■ Process connection:M20×1.5 or 1/2NPT
■ Electric connection:M20×1.5
■ Mounting position effect:unrestricted
■ Degrees of protection:IP65
■ Process connection:1Cr18Ni9Ti
■ Diaphragm material:316L stainless steel
■ Housing material:cast aluminum
■ Weight:about750g
■ Power consume:<0.5W
