Summary
PB8300 series slries silicon pressure transmitters use the sensor elements with high accuracy,stability and reliability and measure the pressure of the liquid or gas or the level of the liquid ,then change into 4～20mA electric signal.
Scope of application
■ Light industry
■ Medical instrumentation
■ Spaceflight machine
■ Petroleum chemical industry
■ Hydraulic and air pressure system
■ Internal-combustion engine,refrieration,air-condition
■ Compressor
■ Foodstuff,sanitation,medicine,drink
Characteristics
■ Wide range:-0.1MPa～0,0～(10KPa up to 40MPa)
■ Zero and range adjustable
■ Lightning strike protection
■ Extensive and convenient
■ High accuracy,stability and reliability
■ Special connection,easy to maintain Use GDM-12B of Hirschmann(DIN43650-A/250)
■ Easy to clean
Technical parameter
■ Accuracy:0.25%F·S、0.5%F·S
■ Measuring Range:-0.1MPa～0；0～（10KPa up to 40MPa)
■ Linear:superior to0.2%F·S
■ AmbientTemp effect:<±0.025%F·S/℃
■ Stability:≤0.2%F·S/year
■ Response time:≤10mS
■ Power supply:24VDC(or12～36VDC)
■ Output:4～20mA DC (or 1～5VDC)
■ Load:0～600Ω(Rz=(U-12)/0.02)
■ Overload limit:1.5×full scale
■ Ambient Temp:-20～+85℃
■ Medium Temp:-20～+85℃
■ Storing Temp:-20～+125℃
■ Process connection:M20×1.5 or 1/2NPT
■ Operating position:unrestricted
■ Process connection material:1Cr18Ni9Ti
■ Diaphragm material:316Lstainless steel
■ Housing material:stainless steel
■ Weight:about:500g
■ Power consume:<0.5W

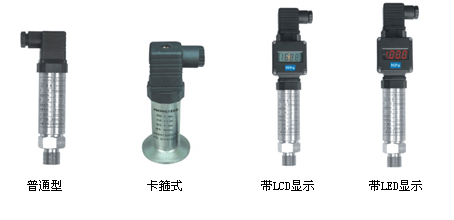

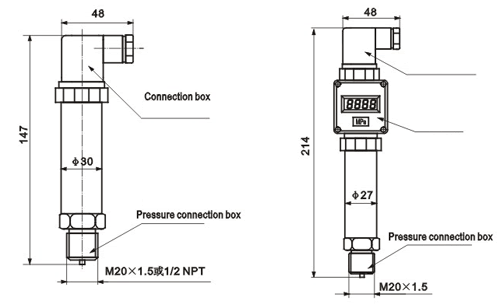

Size:

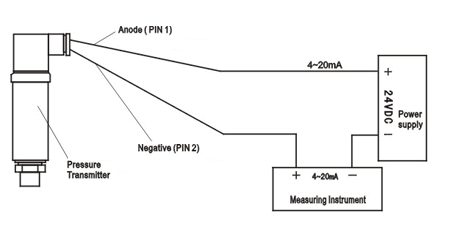

Connect diagram:

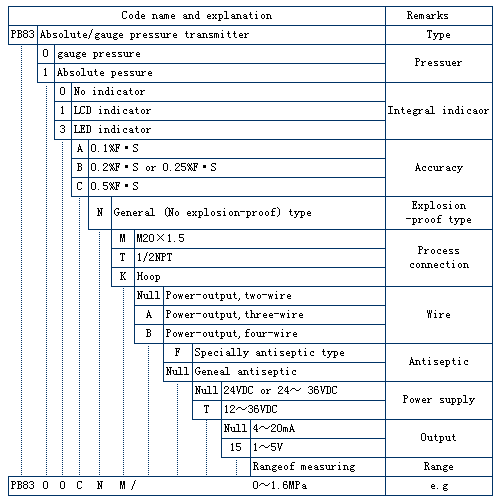

Modeol and suffix codes
|
