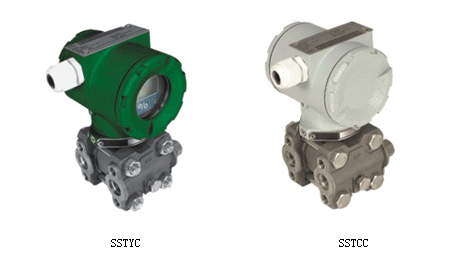

SUMMARY

STCC and SSTCC series capacitance transmitters have so many advantages such as new design,all specifications,easy installation,essence safety explosion-proof etc.They are famous for high accuracy,small,light,firm,convenient,good overload protection.
STCC and SSTCC series capacitance transmitters include pressure,difference of pressure,absolute pressure,flux,level and so on .The product whose options,signal,installation are according to the worldwide companies and price is very low observes domestic IEC,so it is the best choice for the customer.

CHARACTERISTICS

■ Super performance,measuring the pressure,pressure,
   difference of pressure,absulte pressure,flux,level.
■ Number accuracy:±0.05%
■ Simulation accuracy:±0.075%～±0.1%F·S
■ Complete performance:±0.25%F·S
■ Stability:0.25% 60months
■ Scale:100:1
■ Ressponse time:0.2s
■ Small,stainless steel flange
■ Best measure
■ Sole sensor with H jacket(patent)
■ Excellent cold and hot stabilities
■ Brainpower transmitter with 16Bits computer
■ 4～20mA,HART consultative DS,long-distance control
■ Support to upgrade

capability gudie line

■ Accuracy:±0.25%～±0.0.075%
■ Ambient Temp effect/28℃
   Scale ratio from 1:1 to 10:1:≤±0.2%
   Minim scal(≤1.5KPa):±0.5%
■ Influence of pressure (Differential Pressure)
   1.Zero error
   0～13.7MPa,±0.2%/6.9MPa
   over 13.7MPa,±0.5%/6.9MPa
   13.7MPa,±0.5%/6.9MPa
■ Stability
   60moths,±0.25%F·S,28℃,
   Max pressure:6.9MPa,scale for 1:1
■ Place influence
   Move less than 250Pa on zero ,no influence for scale
■ General perfor mance
   ±0.25%(scale of 1:1,28℃ changeable, 6.9MPa)
■ Vibration influence(except minim scale)
    Measure random axis
    < ±0.1F·S(15～2000Hz)
■ Influence of Power Supply:effect≤0.005%V
■ Isolation and reverse polarity protection
    No arc light under 50Hz,100Vpp
    No damage when reverse connection under 24VDC

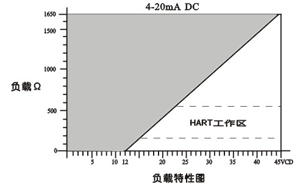

■ Power Supply:12～45VDC

■ Work temperature:-20℃～+85℃
■ Storing temperature:-40℃～+104℃
■ Relative humidity:0～90%

■ Diaphragm material:316L,HastelloyC,Monel,
    Ta stainless steel.(select one)
■ Housing low cooper cast-alaminum alloy with,
    polyurethane paint
■ Degrees of protection:IP67
■ Fill Fluid:silicone oil Glyceride and water
■ Cover O-rings
■ NBR Teflon

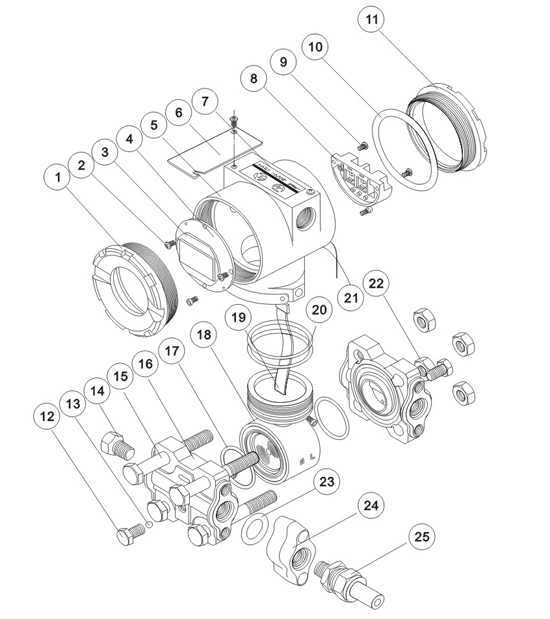

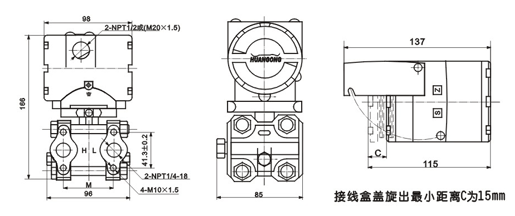

Resolve diagram：

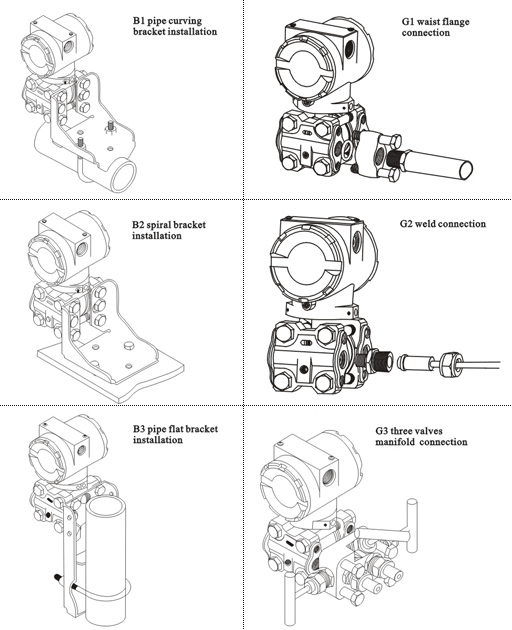

Connect diagram

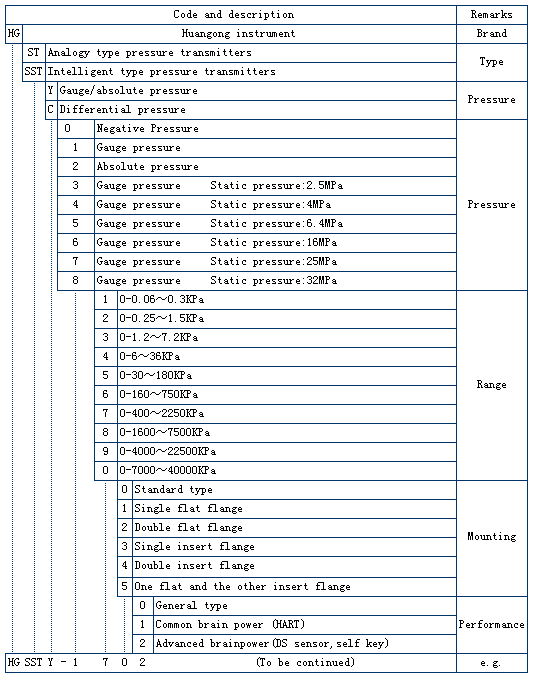

e.g. ：HGSSTY-1702M1B3D2E1G2F22 0～1MPa means: High intelligence mode (digital sensor).Whith linear indicator,pipe curving bracket,liquid discharge valve down.General cable connector,Sensor connector uses the welded pipe connector,construction material all adopts 316 stainless steel,measuring range of 0～1MPa means the pressure of Gauge.
