SBWR/Z Series
High Performance Temperature Transmitter Module
|
|
|
|
Summary
SBWR/Z series temperature transmitter modules measure are scene installaiton temperature transmitter unites .They adopt two-wire way.output the current signal of 4～20mA,can be used in the junction box or fixed in the instrument b
|
| |
|
Scope of application
■ Petroleum,chemical industry,textile industry,metallurgy,electric power
■ Spaceflight,food processing,medicine
■ Other Auto-control and measuring
|
| |
|
Characteristics
■ Advanced non-linear adjustment circuit
■ Floating self-adjustment circuit
■ Sole anti-interruption circuit
■ High accuracy cold end compensation circuit
■ Anti-corrosive,high reliability
|
| |
|
Technical parameter
■ Accuracy:±0.1%FS,±0.2%FS,±0.5%FS
■ Ambient temp effcet:Grade0.1:0.01%FS/℃
Grade0.2:0.02%FS/℃
Grade0.5:0.05%FS/℃
■ Output:24VDC,4～20mA
■ Error of compensation for cool end:< 1°/k,J,E,S
■ Stability:<0.2%FS/year
■ Load:0～600Ω
■ Power supplyJ:24VDC
■ Ambient Temp:-25～+85℃
■ Storing Temp:-25～+125℃
■ Medium Temp:-200～+1600℃
■ Response time:≤10ms
■ Explosion-proof:lssence safety ia Ⅱ CT4
■ Weight:

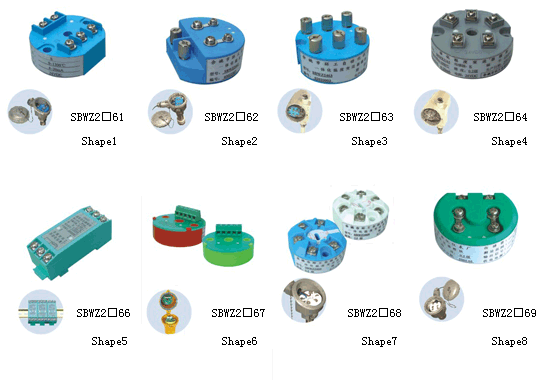

| Shape |
Shape1 |
Shape2 |
Shape3 |
Shape4 |
Shape5 |
Shape6 |
Shape7 |
Shape8 |
| Mould |
SBWR/Z
2□61 |
SBWR/Z
2□62 |
SBWR/Z
2□63 |
SBWR/Z
2□65 |
SBWR/Z
2□66 |
SBWR/Z
2□67 |
SBWR/Z
2□68 |
SBWR/Z
2□69 |
| Weight |
40g |
70g |
75g |
55g |
65g |
45g |
45g |
65g |
■ Power Consume:<0.5W
|
|

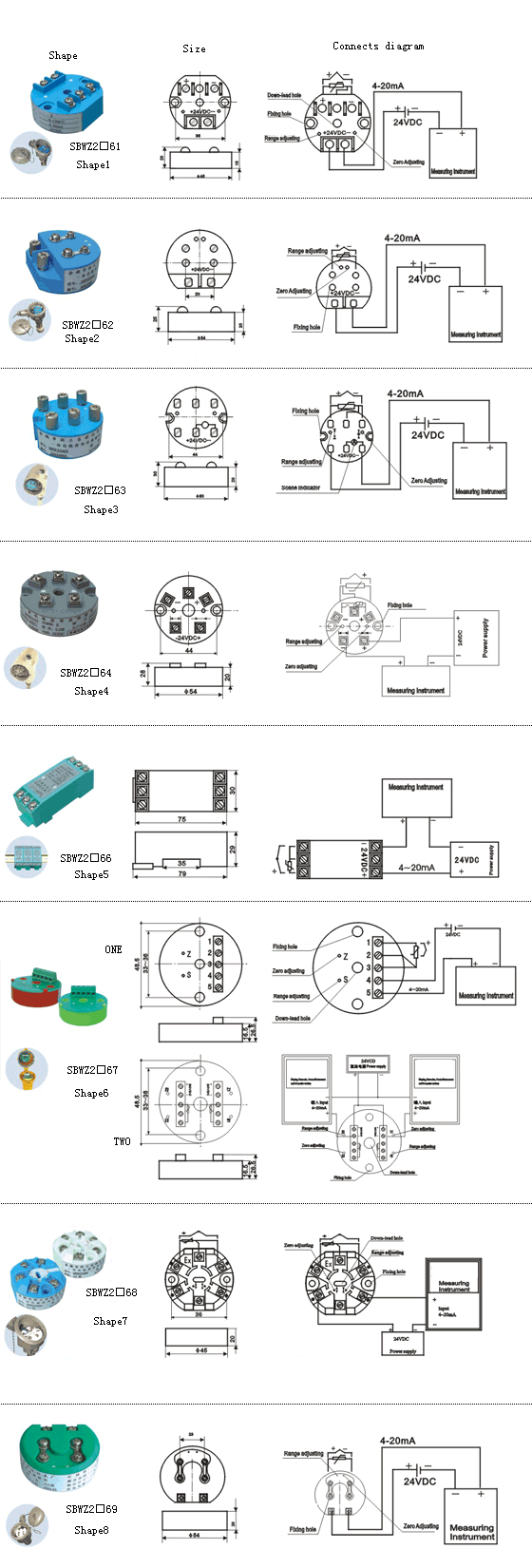

Size:
|
|

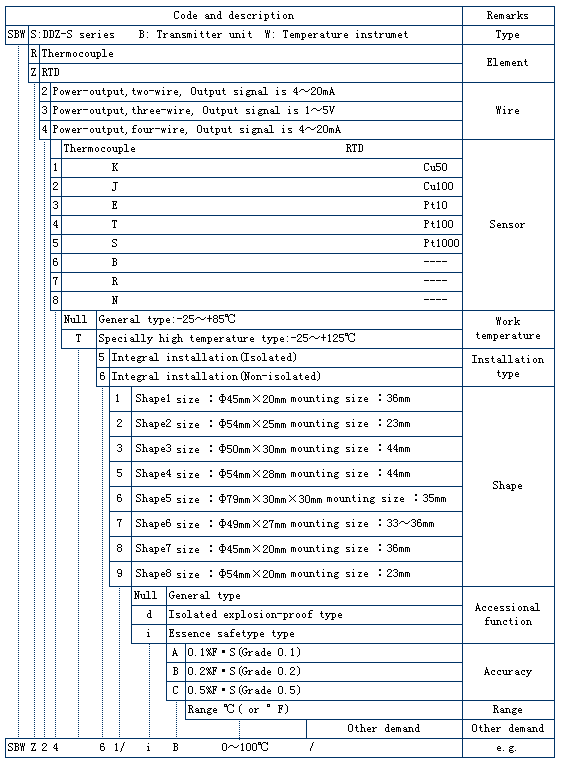

Model and suffix codes：
Viz.SBWZ 2461/iB 0～100℃ means temperature transmitter module,Pt100,0～100℃,24VDC,4～20mA,two-wire,non-islated,shape1,Essence safety type,Grade 0.2.
|
|
|
|
