SBWR/Z Series
Integral Temperature Transmitter

Summary

　　SBWR/Z series temperature transmitters are scene installation temperature transmitter units to be used to measure the temperature of the gas,liquid and so on between -200℃ and +1600℃.They adopt two-wire way,output the current signal of 4～20mA ,can be used in the junction box or fixed in the instrument box .

　　The products have already extensively applied in the petroleum,chemistry industry,metallurgy,electric power,light industry,textile industry,food processing etc.and can be used with instrument,recorder and computer to be a temperature control system.

Characteristics

■ Compensation for cool end with high accuracy
■ Output signal linear with temperature

Technical parameter

■ Accuracy:±0.2% ±0.5%　±1%
■ Ambient temperature effect:
　Grade 0.2:0.02%F.S/℃
　Grade 0.5:0.05%F.S/℃
　Grade 1.0:0.05%F.S/℃
■ Output:4-24mA,two-wire transmit
■ Power supply:14-34VDC,or 24VDC

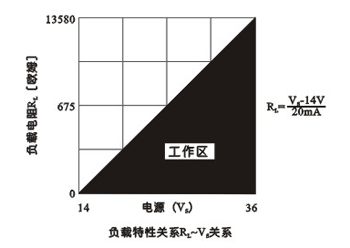

■ Load:0-500Ω(for24VDC)


■ Error of Compensation for cool end :<1℃(under work Temp)
■ Work Temp:-25～+85℃|
■ Storing Temp:-25～+125℃
■ Humidity:5～95%
■ Accuracy of the indicator:±2.5%(100%scale)
　　　　　　　　　　　　　　 ±1.0%(LED)　
■ Power Consume:＜0.5W

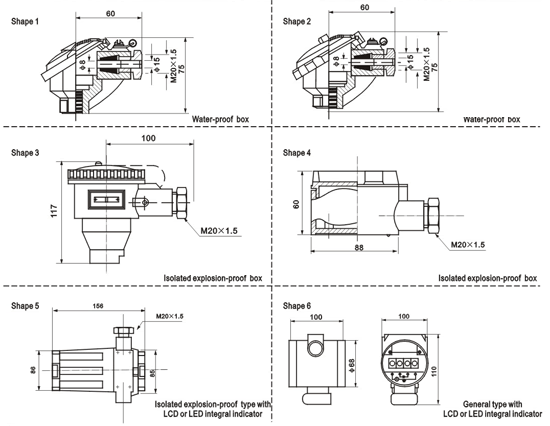

The size of junction box

Assembled

Fixed screw thread		d	M		H	S	D。		Normal Pressure
		Φ12 Φ16	M27*2		32	32	Φ40		10
Active flane		d	D2		D1		d0		Normal Pressure
		Φ12 Φ16 Φ20	Φ70		Φ54		Φ6		General pressure
Fixed flange		dD2	D2	D1	D0	d0	H	h	Normal Pressure
		Φ12 Φ16 Φ20	Φ95	Φ65	Φ45	Φ14	19	3	6.4
Fixed screw thread and cone-shaped pipe		d	M		h	s	D0		Normal Pressure
		Conne-shape	M33*2		32	36	Φ48		30

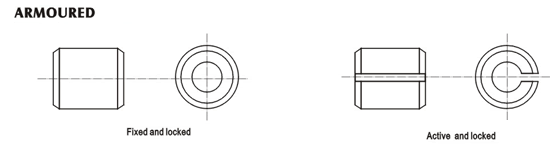

Armoured

形式		基本参数\Φ	Φ8	Φ6	Φ5	Φ4	Φ3	Φ2
Locked screw thread		M	M16×15			M16×15
		S	22			19
		H	15
		Fixed and locked nominal pressure	25MPa
		Active and locked nominal pressure	General pressure
Locked flange		D	Φ60			Φ50
		D0	Φ42			Φ36
		D1	Φ24			Φ20
		d0	Φ9			Φ7
		s	Φ22			Φ19
		Fixed and locked nominal pressure	25MPa
		Active and locked nominal pressure	General pressure

All the type of sensor end is insulated
Temperature and response time

Assembled

Armoured

Order：

■ When order please specify:

　1.Product name 2.Type 3.Sensors 4.Temperature testing scope 5.Accurcy and material,outer diameter,total length,insert depth of the protecting pipe 6.Mousing type 7.Temperature of the environment 8.The sign of the anti-explord for the type Anti-explord product 9.Qty 10.Delivery time

■ If customer doesn't specify the accuracy.For SBWR series of the temperature Transmitter with ,we offer 1 grade product.

■ For SBWZ series the temperature Transmitter with,we offer 0.5 grade product.

■ Special requirements of the product can be ordered after negotiation

■ Order e.g.

　SBWZ Essence safety integral Temperate Transmitter with Pt100.0℃～100℃,Total accuracy±5%,material of sheathed protecting pipe is lcr18Ni9Ti,

　outer diameter 16,total length of 350mm,insert depth of 200mm,fixed install thread of M20×1.5,ambient

　temperature of -25+85℃,two wires transmit type,

　Integral install non-seperate type ,the explode -proof is Exiall CT5,so its model is

　SBWZ-246PW/G230i/350×200/0～100℃(frxed thread M20×1.5,material of sheathed protecting pipe is lcr18Ni9Ti)

　SBWR series lsolated explode -proof thermocouple integral temperature transmitter,K,200～800℃,total accuracy: ±1.0%,Material of sheathed protecting pipe is Icr18Ni9Ti,outer dimeter16, total length of 1000mm,insert depth of 850mm,fixed and locked installed ambient temperature of -25℃～+120℃,two wires transmit type,Integral install non-seperate type the explode sign is Exiall BT4,so its model is SBWR-216TW/K240J/1000×850/200～800℃,

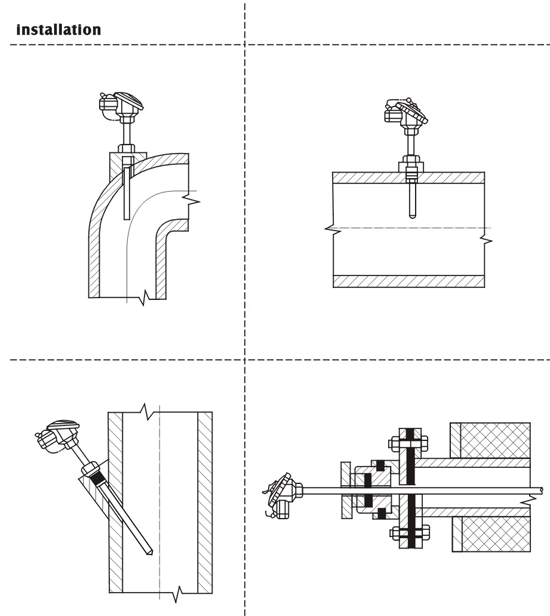

Installation：

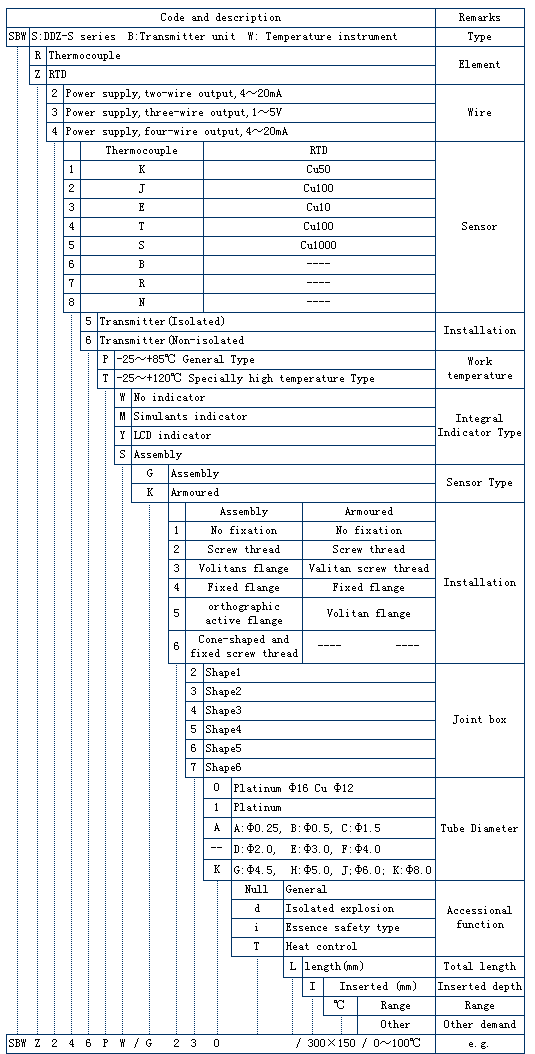

选型指南：

viz.SBWZ246PW/G230/300×150/0～100℃，means integral temperature transmitter,Pt100,24VDC,4～20mA,Power-output is two-wire,No integral indicator indicator,water-proof joint box,fixed screw thread,tube diameter is Φ16，total length is 300mm,insert depth is 150mm,measuring range is 0～100℃.
