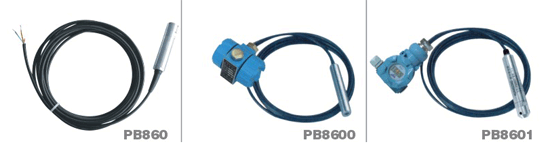

PB 8600 Series
Submersible Hydrostatic Level Transmitter

Summary

PB8600 series submersible hydro static transmitters consisrt of berathing cable and stainless steel pipe that measure the height of the liquid by the pressure of the sensor,then change into standard electric signal.

Scope of application

■　Sewage treatment,watersupply
■　Well,culvert,water tank,pool
■　Oil and water pool of industry
■　Reservoir,river way,sea

Characteristics

■　Convenience and ingenuity
■　Wide range:up to 0.5m
■　Reverse polarity and limit protection
■　Lightning strike protection
■　High accuracy,stability and reliability
■　Dew-proof,water-proof

Technical parameter

■ Accuracy:0.5%F.S
■ Measuring Range:over0.5m
■ Linearity:Superior to 0.2%F.S
■ Ambient temp effect:＜±0.05%F·S/℃
■ Stability:＜0.2%F·S/year
■ Response time:10ms
■ Power supply:24VDC
■ Output:4-20mA　　
■ Load:0-600Ω　　
■ Ambient Temp :-20～+85℃
■ Medium Temp :-10～+60℃
■ Storing Temp:-40～+125℃
■ Electric connection:M20×1.5
■ Installation:at the bottom of the liquid
■ Housing material:1cr18Ni9Ti
■ Diaphragm material:316L stainless steel
■ Breathing cable material:Polythene
■ Weight:stainless steel pipe:G1=300g
　　　　　breathing cable:G2=65g/m
　　　　　junction box:G3=700g
■ Gross weight:G=G1+G2×length（m）＋G3
■ Power Consume:＜0.5W

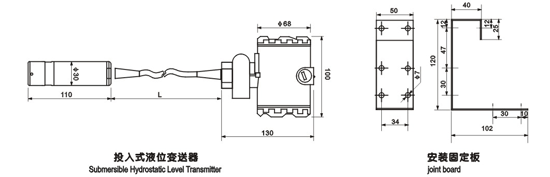

Size：

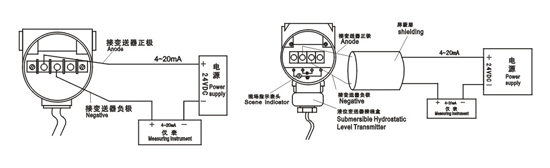

Connects diagram：

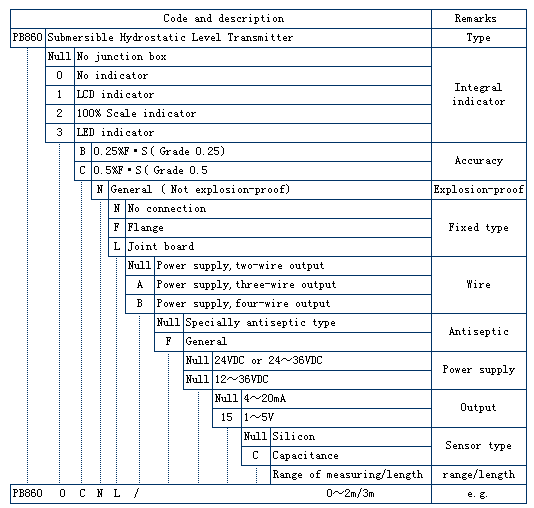

Model and suffix codes：

PB8600CNL/0～2m/3m means: submersible gydrostatic transmitter,No indicator,Grade0.5,General,with joint board,two-wire,24VDC,4～20mA,silion sensor,0～2m.the length of breathing cable is 3 metres.
