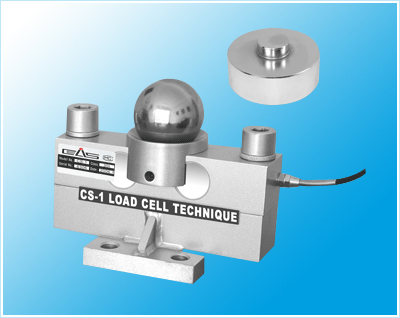

CS-1 Type Load Cell




Materials:Tool Steel

Function Characteristics
Supported at two ends and receiving stress in their middle parts, our sensors feature a broadened range of weighing distance, good accuracy and stable performance.

Can be used in various electronic weighers for vehicles material hopper weighers and
dynamo metric apparatuses.

Automatic reset,resistant to deviation and laterality, easy to install and put into use good inter changeability.

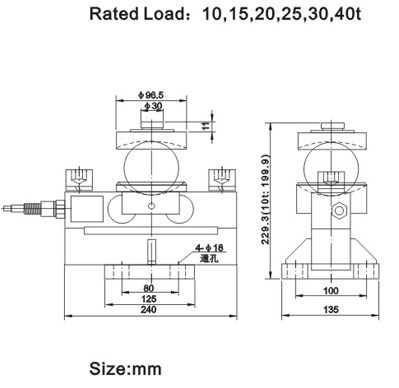

configuration:

Techincal Parameter


Sensitivity

2.0mv/v

NOn linearity

±0.02~±0.05%FS

Hysteresis

±0.02~±0.05%FS

Repeatability

0.02%FS

Creep

±0.02~±0.05%FS/30min

Creep recovery

±0.02~±0.05%FS/30min

Zero balance

2%FS

Zero temperature coefficient

0.03~0.05%FS/10℃

Rated output temperature coefficient

0.03~0.05%FS10℃

Output resistance

700Ω

Insulation resistance

≥3000MΩ

Supply Voitage

5~15V

Safe temperature range

-30~+60℃

Safe overload

130%FS

Method of connecting wire

输入input:红Red(+)黄Yellow(-)
输出output:兰Blue(+)白White(-)
