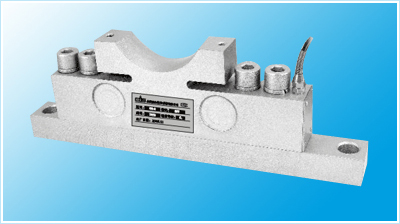

Special sensors used for transforming the hoist into pendent weigher．

Fish back load-bearing suurface to ensure weighing accuracy in case the axle bends at load or the weigher isn't well levelled

Supported at the two ends of the fixing-sliding axle，the pendent electronic weigher fitted with this sensor can achieve an actual accuracy up to 0.1-0 3% Strictly sealed. Stable performance

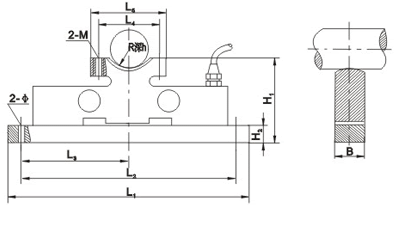

Rated load\size(mm)	L1	L2	L3	L4	L5	B	H1	H2	R深H	2-Φ	2-M
2、3t	344	304	133	110	130	40	83	25	29深17	17.5	10
5、6、8t	344	304	133	110	130	40	95	30	41深20	17.5	10
10t	344	304	133	110	130	40	110	30	41深24	17.5	10
15、20t	442	402	184	145	165	46	149	35	56深30	21	10
25、30、40t	442	402	189	145	165	46	165	35	59深30	21	12

▲R is to be docided to user’requfirement

Sensitivity	1.5～2.0mv/v
Non linearity	0.05%FS
Hysteresis	0.05%FS
Repeatability	±0.03%FS
Creep	±0.05%FS/30min
Creep recovery	±0.05%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
