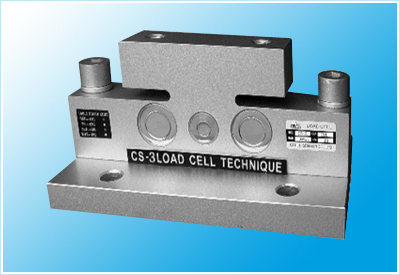

Supported at tow ends and receiving stress in their middle parts, our sensors feature a broadened range of weighing distance，good accuracy and stable performance

Can be used in various electtonic weighers for vehicles material hopper weighers and dynamo metric apparatuses

Resistant to deviation and laterality easy to install and put into use good inter changeability.

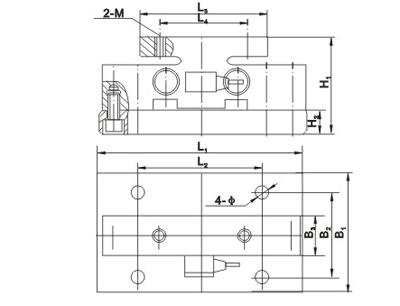

Rated load\size(mm)	L1	L2	L3	L4	B1	B2	B3	H1	H2	M	Φ
0.5-2t	200	174	125	95	100	70	45	100	20	M12	Φ13
3-6t	230	174	140	110	100	70	45	114	25	M16	Φ13
8-15t	318	192	180	120	182	128	60	166	42	M20	Φ22
20-25t	318	192	180	120	182	128	65	166	42	M20	Φ22

Sensitivity	1.5～2.0mv/v
Non linearity	±0.05%FS
Hysteresis	±0.05%FS
Repeatability	0.03%FS
Creep	±0.05%FS/30min
Creep recovery	±0.05%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
