Materials：Tool Steel

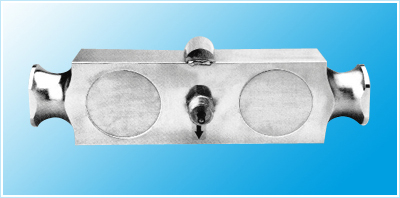

Doubleshear beam

Strong yaw stiffness and retortion capability

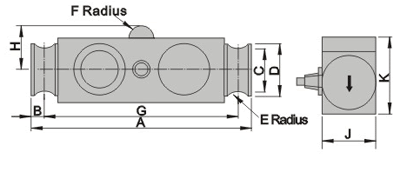

Rated Load	Size：Inch
	A	B	C	D	E	F	G	H	J	K
25-40K	8.25	0.50	1.63	2.00	0.50	0.50	7.25	1.75	1.94	2.44
50-75K	11.5	0.75	1.70	2.20	0.75	1.00	10.0	2.00	1.94	2.94
100-125K	14.5	1.00	2.44	3.20	1.00	1.50	12.5	2.75	2.90	3.86

Sensitivity	3±0.01mv/v
Nonlinearity	±0.03%FS
Hysteresis	±0.03%FS
Repeatability	0.02%FS
Creep	±0.03%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.03%FS/10℃
Rated output temperature coefficient	±0.03%FS/10℃
Output resistance	700Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
Temperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
