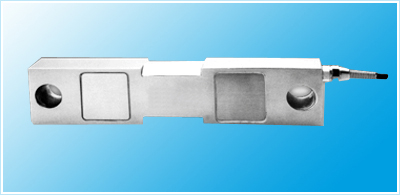

Materials：Tool Steel

doubleshear beam，concave spherical loadbearing design

Strong yaw stiffness and retortion capability

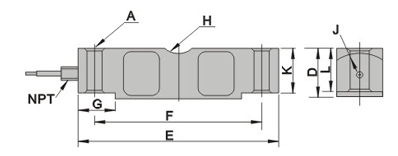

Rated Load Lb	Size:Inch
	A	C	D	E	F	G	H	J	K	L
10-25K	0.68	1.69	1.94	7.75	6.50	1.38	0.75	0.90	1.63	1.70
40-50K	0.81	1.94	2.44	10.25	8.50	1.93	1.00	1.12	2.00	2.10
50-75K	1.06	2.44	2.94	10.25	8.50	1.93	1.00	1.37	2.54	2.65
100-125K	1.62	2.90	3.86	15.25	12.75	3.13	1.50	1.80	3.30	3.43
(Above values are expessed in inches)

Sensitivity	3±0.01mv/v
Nonlinearity	±0.03%FS
Hyateresis	±0.03%FS
Repeatability	0.02%FS
Creep	±0.03%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.03%FS/10℃
Rated output temperature coefficient	±0.03%FS/10℃
Output resistance	700Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
Temperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
