Materials：Tool Steel

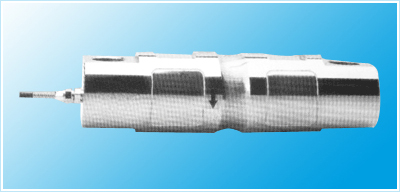

Doubleshear beam

Strong yaw stiffness and retortion capability

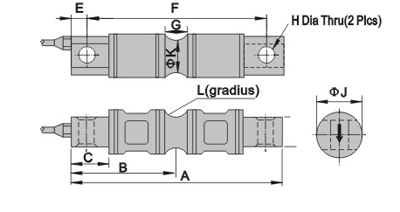

Rated load Lb	Size:Inch
	A	B	C	D	E	F	G	H	J	K	L
5-10K	8.12	4.06	1.44	1.12	0.62	6.88	0.62	0.66	1.70	1.48	0.5
20K	8.12	4.06	1.44	1.12	0.62	6.88	0.84	0.66	1.95	1.48	0.5
30-60K	10.25	5.12	1.88	2.37	0.88	8.50	1.00	1.06	3.00	2.73	1.0
100K	11.25	5.62	1.88	2.50	0.88	9.50	1.00	1.06	3.50	3.24	1.0
150K	11.25	5.62	1.88	2.50	0.88	9.50	1.25	1.06	3.90	3.64	1.5

Sensitivity	3±0.01mv/v
Nonlinearity	±0.03%FS
Hysteresis	±0.03%FS
Repeatability	0.02%FS
Creep	±0.03%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.03%FS/10℃
Reted output temperature coefficient	±0.03%FS/10℃
Output resistance	700Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
Temperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
