Materials：Tool Steel

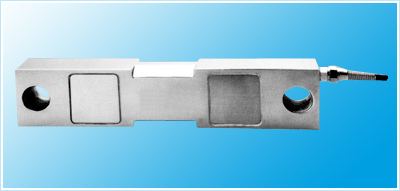

doubleshear beam.

Strong yaw stiffness and retortion capability.

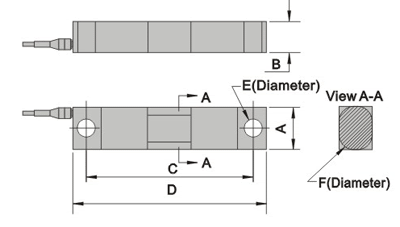

Rated Load Lb	Size:Inch
	A	B	C	D	E	F
1-5K	1.24	1.24	6.25	7.70	0.50	1.24
10-25K	1.94	1.44	7.50	8.75	0.75	1.99
50-75K	2.94	2.44	11.5	13.5	1.06	3.00

Techincal Parameter

Sensitivity	3±0.01mv/v
Nonlinearity	±0.02%FS
Hysteresis	±0.02%FS
Repeatability	0.01%FS
Creep	±0.02%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.02%FS/10℃
Rated output temperature coefficient	±0.02%FS/10℃
Output resistance	700±5Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
TEmperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Connect cable	Ф5×10000mm
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
