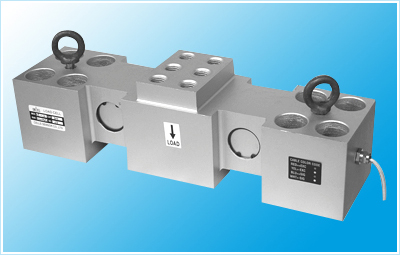

Materials：Tool Steel

Doubleshear beam,plane Ioadbearing design.

Strong yaw stiffness and retortion capability.

Used in ladle scales.

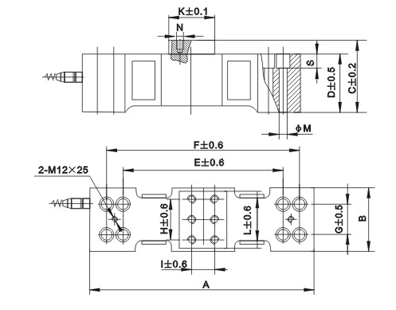

Rated Load	A	B	C	D	E	F	G
20t	365	100	120	95	260	312	48
50t	450	120	130	105	298	398	68
100t	500	140	143	118	336	444	80
150t	560	160	158	133	372	500	94
200t	620	180	175	150	400	560	114

Rated Load	H	I	K	L	M	S	N
20t	64	38	76	90	Ф18	20	M16×20
50t	75	40	80	110	Ф26	25.5	M20×30
100t	90	44	90	130	Ф32	32	M24×36
150t	102	44	90	150	Ф32	32	M24×36
200t	110	44	90	160	Ф32	32	M24×36

Sensitivity	1.5±0.1mv/v
Nonlinearity	±0.05～±0.1%F．S
Hysteresis	±0.05～±0.1%F．S
Repeatability	0.03～0.05%F．S
Creep	±0.05～±0.1%F．S/30min
Zero balance	2%F．S
Zero temperature coefficient	±0.05～±0.1%F．S/10℃
Safe temperature range	-30～+60℃
Output resistance	700Ω
Insulation resistance	≥2000MΩ(50VDC)
Safe overload	130%F．S
Supply Voltage	5-15V
Connect cable	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
