Materials：Stainless steel　　　

Elastic part is of plate ring or double hole structure that are popular worldwide nowadays.

Load-connection is effected with internal and external threads, resulting in good resistivity to deviation and latarality, high accuracy and stable performance,

Used for electronic scale hopper scale belt scale with different weighing capacities as well as dynamo metric apparatuses, Easy to install and put into use,

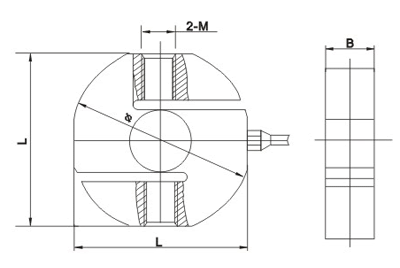

Rated Load\Size(mm)	Φ	B	M	L
1t	89	30	16	83
2t	110	30	20×1.5	102
3t	110	40	20×1.5	102
5t	120	40	20×1.5	114

Sensitivity	1.50～2.00mv/v
Non linearity	±0.03～±0.05%FS
Hysteresis	±0.03～±0.05%FS
Repeatability	0.02～0.03%FS
Creep	0.03%FS/30min
Creep recovery	0.03%FS/30min
Zero balance	2%FS
Zero temperature coeffient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS/10℃
Output resistance	350Ω
Insulation rasistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Methof of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
