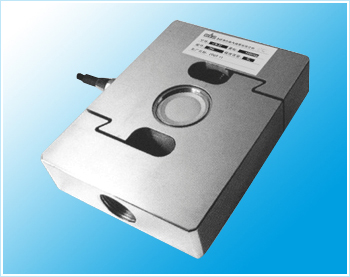

CS-27 Type Load Cell
|
| |
Materials：Stainless steel
|
| |
|
Function Characteristics
|
|
Second generation of cs-25, cs-26, with overload safeguard.
Be more adequate for places with high requirements on safety performance.
|
| |
|

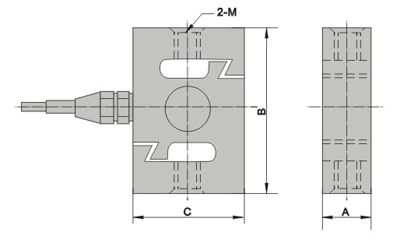

configuration：
|
| Reted Load |
Size：mm |
Whorl |
| Lb |
kg |
A |
B |
C |
公制mm |
英制inch |
| 250-1500 |
100-750 |
19 |
80 |
70 |
M12×1.75 |
1/2-20 |
| 2000-3000 |
1000-1500 |
25 |
80 |
70 |
M12×1.75 |
1/2-20 |
| 5k-10k |
2000-5000 |
25 |
108 |
95 |
M18×1.5 |
3/4-16 |
| 20k |
10000 |
51 |
178 |
130 |
M30×2 |
11/4-12 |
| 40k |
20000 |
60 |
190 |
160 |
M39×2 |
11/4-12 |
|
| |
|
Techincal Parameter
|
| Sensitivity |
2±0.01mv/v 3±0.01mv/v |
| Nonlinearity |
±0.02%FS |
| Hysteresis |
±0.02%FS |
| Repeatability |
0.01%FS |
| Creep |
0.02%FS/30min |
| Zero balance |
2%FS |
| Zero temperature coefficient |
±0.02%FS/10℃ |
| Rated output temperature coefficient |
±0.02%FS/10℃ |
| Output resistance |
350Ω |
| Insulation resistance |
≥5000MΩ |
| Supply Voltage |
5～15V |
| Temperature compensation range |
-10～+50℃ |
| Safe temperature range |
-30～+60℃ |
| Safe overload |
130%FS |
| Method of connecting wire |
输入input：红Red(+)黄Yellow(-)
输出output：兰Blue(+)白White(-) |
|
