Materials：Tool Steel

Column structures respectively according to the loads to facilitate the loading and result in a reliable performance.

Suitable for the dynamo metric system such as the electronic belt scale and pushing hopper scale.

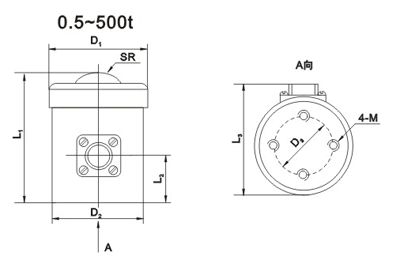

Rated Load\Size(mm)	L1	L2	L3	SR	D1	D2	D3	4-M
0.5～3t	88	40	075	15	65	60	38	6深8
4～7	96	42	75	15	65	60	38	6深8
10～30	130	58	103	20	92	87	56	8深10
50～100	178	78	138	60	134	126	90	10深15
150～200	270	118	164	70	160	152	115	16深20
300	330	145	205	80	200	185	125	20深25
500	385	168	234	120	238	223	135	24深30

Sensitivity	2.0～2.5mv/v
Non linearity	±0.05～±0.1%FS
Hysteresis	0.05～0.1%FS
Repeatability	±0.03～0.05%FS
Creep	±0.05～±0.1%FS/30min
Creep recovery	±0.05～±0.1%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.05～0.1%FS/10℃
Rated output temperature coefficient	0.05～0.1%FS/10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
