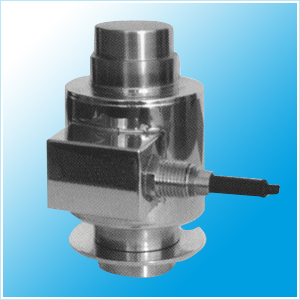

Materials：Tool Steel 　Stainless steel

Can be used in various electronic automobile weighing apparatus, hopper scale, vessel scale and so on.

With advantage of automatic reset and good interehangeability.

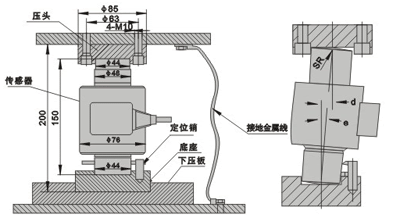

Rated Load	d Max	e Max	（SR）
15t	13	5°	130
20t	13	5°	130
25t	13	5°	150
30t	13	5°	160

Sensitivity	2±0.01mv/v
Nonlinearity	±0.02%FS
Hysteresis	±0.02%FS
Repeatability	0.01%FS
Creep	±0.02%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.02%FS/10℃
Rated output temperature coefficient	±0.02%FS/10℃
Output resistance	350Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
Temperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
