Materials：Tool Steel 　　　

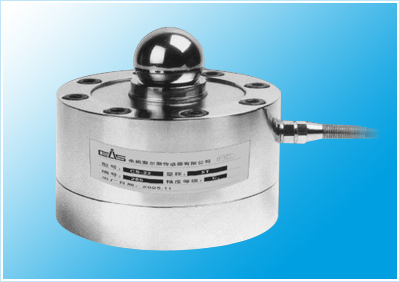

Second generation of cs-20, better property.

wide range, minute extension,

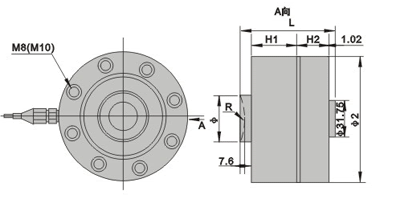

Rated Load		Size mm
Lb	t	Φ	R	L	H1	H2	Φ2
5-10K	2-5	34	16	64	32	19	106
25-50K	10-25	41	22	79	47	24	122
100K	50	51	22	88	51	29	143

Sensitivity	2±0.01mv/v     4.0±0.01mv/v
Nonlinearity	±0.03%FS
Hysteresis	±0.03%FS
Repeatability	0.01%FS
Creep	±0.02%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.02%FS/10℃
Rated output temperature coefficient	±0.02%FS/10℃
Output resistance	700Ω
Insulationg resistance	≥5000MΩ
Supply Voltage	5～15V
Temjperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
