Materials：Tool Steel

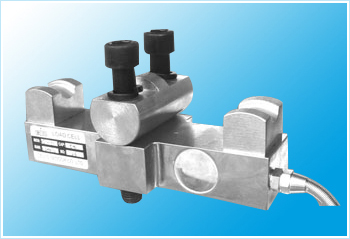

Cantilever beam structure, multi-kind loading forms for choice,

Low elevation, robust structure, good resistivity to fatigue and load laterality.

Especially good for electronic belt scale,hopper scale, platform scale and ground weigher,

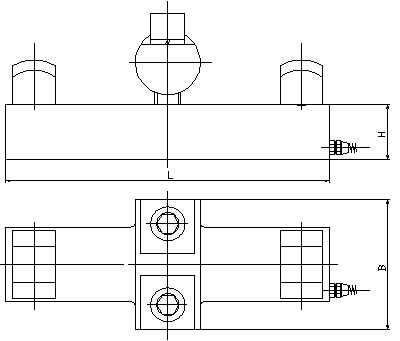

Rated Load		L1	L2	L3	L4	B1	B2	B3	H	Φ	P承载
1.2t	D	170	26	50	77	42	36	-		2-Φ16.5	M-12
	D	203	19	64	98	43	37	30	57.9	2-Φ13	Φ16-Φ32
3t	D	202	28	57	100	55	40	-		2-Φ16.5	M-16
	D	203	19	64	98	43	37	30	57.9	2-Φ13	Φ16-Φ32
5t	D	235	23	66	124	52	48	30	78.7	2-Φ21	Φ22-Φ38
10t	D	279	25	82	140	67	60	20	127.7	2-Φ28	Φ32-Φ48
20t	D	318	32	89	159	82.5	70	24	143.7	2-Φ34	Φ32-Φ54

Sensitivity	1.5～2.0mv/v
Non linearity	0.02～±0.05%FS
Hysteresis	0.02～±0.05%FS
Repeatability	0.02～0.03%FS
Creep	±0.02～±0.05%FS/30min
Creep recovery	±0.02～±0.05%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.03～0.05%FS10℃
Rated output temperature coefficient	0.03～0.05%FS10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
