Materials：Tool Steel

High degree of accuracy, high reliability,high interchangeability,

Apply to various force measurement by platform balance, belt balance, hopper scale

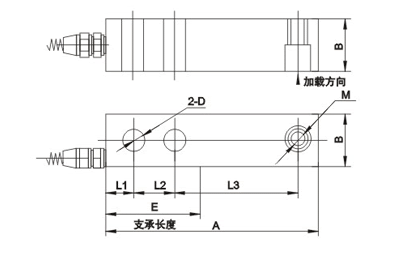

Rated Load\Size（mm）	A	B	D	E	L1	L2	L3	M
50，70，100，150，200，300，500，700kg，1，1.5，2t	130	32	Φ13	57	16	25	76	M12
3，5t	171	38	Φ21	76	19	38	95	M20
7，10t	226	51	Φ25	102	25	51	124	M24×2

Sensitivity	2±0.01mv/v     3±0.01mv/v
Nonlinearity	±0.03%FS
HYsteresis	±0.03%FS
Repeataility	0.02%FS
Creep	±0.03%FS/30min
Zero balance	2%FS
Zero temperature coefficient	±0.03%FS/10℃
Output resistance	±0.03%FS/10℃
Output resistance	350Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5～15V
Temperature compensation range	-10～+50℃
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
