Materials：Tool Steel

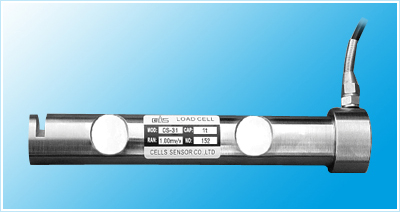

Cantilever beam structure, multi-kind loading forms for choice,

Low elevation, robust structure, good resistivity to fatigue and load laterality.

Especially good for electronic belt scale,hopper scale, platform scale and ground weigher,

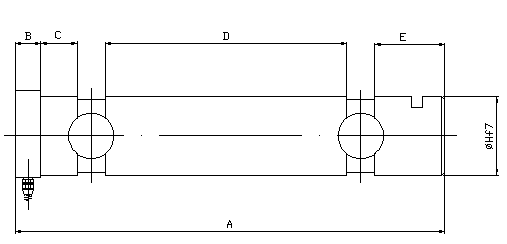

Rated Load\Size	A	B	C	D	E	H
3t	150	18	20	50	30	40
8t	210	20	24	74	36	60
15t	380	23	32	214	62	70

Sensitivity	1.5～2.0mv/v
Non linearity	0.02～±0.05%FS
Hysteresis	0.02～±0.05%FS
Repeatability	0.02～0.03%FS
Creep	±0.02～±0.05%FS/30min
Creep recovery	±0.02～±0.05%FS/30min
Zero baiance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS/10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
