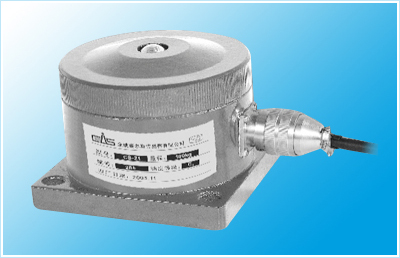

CS-21 Type Load Cell




Materials：Tool Steel 　　　

Function Characteristics
Small measuring range, simple structure.

Apply to belt scale, hopper scale.

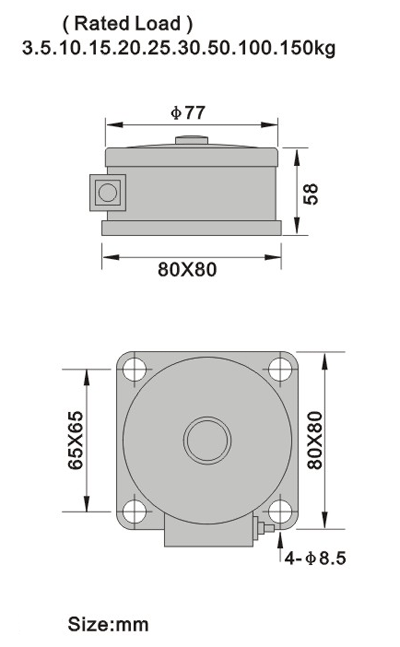

configuration：


Techincal Parameter

Sensitivity 1.5±0.025mv/v
Nonlinearity ±0.03%FS
Hysteresis ±0.03%FS
Repeatability 0.02%FS
Creep ±0.03%FS/30min

Zero balance

 1%FS
Zero temperature coefficient ±0.03%FS/10℃
Rated output temperature coefficient ±0.03%FS/10℃
Input resistance 385±10Ω
Output resistance 350Ω
Insulation resistance ≥5000MΩ
Supply Voltage 5～15V
Temperature compensation range -10～+50℃
Safe temperature range -30～+60℃
Safe overload 130%FS
Method of connecting wire 输入input：红Red(+)黄Yellow(-)
输出output：兰Blue(+)白White(-)
