Materials：Tool Steel

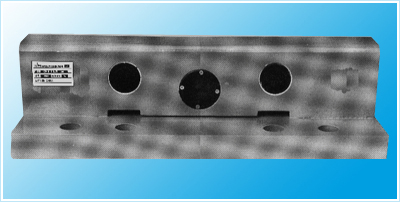

A kind of new type sensor whose structure almost is the same as the steel track section.So it can be directly fitted at coincidence to the tracks to weigh the materials.

Prafform-free service simple structure, easy to install, easy to put into use. stable performance and accurate weighing.

More broadened field of applicability than the electronic track weigher. Can be fitted at coincidence to the tracks to fill up the gap of service left by the electronic track weigher.

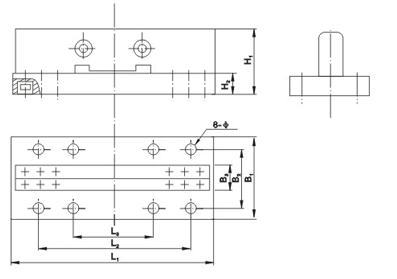

钢轨型号		Rated Load\Size(mm)	L1	L2	L3	B1	B2	B3	H1	H2	Φ
轻轨	15kg/m	5-10t	382	286	168	135	90	37	91	25	Φ17
	18kg/m	5-10t	382	286	168	135	90	40	90	25	Φ17
	24kg/m	10-15t	382	286	168	200	150	51	107	31	Φ22
重轨	38kg/m	10-50t	402	305	185	220	170	68	134	34	Φ22
	43kg/m	10-50t	402	305	185	200	170	70	140	34	Φ22
	50kg/m	10-50t	502	425	280	200	160	70	152	48	Φ26
钢起重轨机	QU100	40-100t	452	350	200	260	200	108	150	48	Φ28
	QU200	50-100t	452	350	200	280	220	129	170	48	Φ28

Sensitivity	1.0mv/v
Non linearity	≤0.1%FS
Hysteresis	±0.05%FS
Repeatability	≤0.05%FS
Creep	≤±0.1%FS/30min
Creep recovery	≤±0.1%FS/30min
Zero balance	2%FS
Zero temperature coefficient	≤0.1%FS10℃
Rated output temperature coefficient	≤0.1%FS10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ(50VDC)
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
