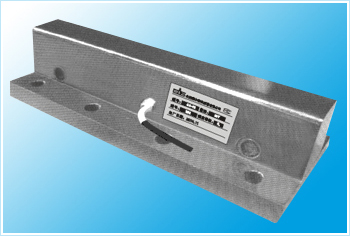

Materials：Tool Steel

Second generation of CS-11.

Do not need approach rail, better dynamic property.

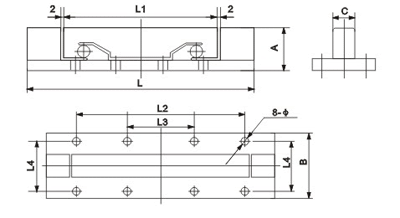

kg/m		Rated Load	L	L1	L2	L3	L4
轻轨	11	1,2t	700	400	350	250	130
	18	2,3t	700	400	350	250	140
	24	5,7t	700	400	350	250	150
重轨	38	10,15t	900	500	450	300	170
	43	10,15t	900	500	450	300	170
	50	10,15t	900	500	450	300	170
起重机钢轨	QU70	10,15t	900	500	450	300	175
	QU80	10,15t	900	500	450	300	185
	QU100	10,15t	900	500	450	300	205
	QU120	10,15t	900	500	450	300	225

kg/m		Rated Load	A	B	C	Φ
轻轨	11	1,2t	80.5	180	32	Φ13
	18	2,3t	90	190	40	Φ17
	24	5,7t	107	200	51	Φ22
重轨	38	10,15t	134	220	68	Φ22
	43	10,15t	140	220	70	Φ22
	50	10,15t	152	220	70	Φ22
起重机钢轨	QU70	10,15t	120	225	76.5	Φ22
	QU80	10,15t	130	235	87	Φ22
	QU100	10,15t	150	255	108	Φ22
	QU120	10,15t	170	275	129	Φ22

Sensitivity	1.0mv/v
Non linearity	≤0.1%FS
Hysteresis	±0.05%FS
Repeatability	≤0.05%FS
Creep	≤±0.1%FS/30min
Creep recovery	≤±0.1%FS/30min
Zero balance	2%FS
Zero temperature coefficient	≤0.1%FS10℃
Rated output temperature coefficient	≤0.1%FS10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ(50VDC)
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
