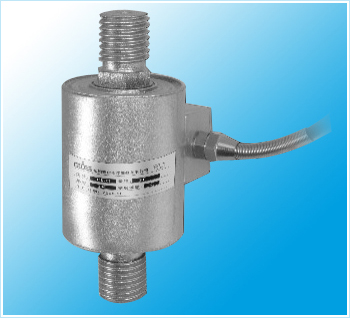

CS-23 Type Load Cell
|
| |
Materials：Stainless steel
|
| |
|
Function Characteristics
|
|
Elastic part is of plate dng or double hole structure that are popular worldwide nowadays.
Load-connection is effected with internal and external threads, resulting in good resistivity to deviation and laterality, high accuracy and stable performance.
Used for electronic scale hopper scale belt scale with different weighing capacities as well as dynamometric apparatuses, Easy to install and put into use.
|
| |
| |
|

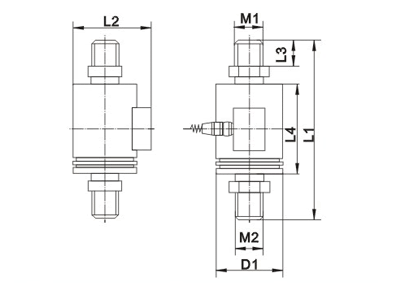

configuration：
|
| Rated Load： |
L1 |
L2 |
L3 |
L4 |
M1=M2 |
D1 |
30,50,70,100,150,
200,300,400kg |
120 |
101.5 |
13 |
69 |
M12 |
Φ85 |
| 0.5,0.7t |
120 |
77.5 |
16.5 |
61 |
M14 |
Φ58 |
| 1t |
120 |
77.5 |
16.5 |
61 |
M16 |
Φ58 |
| 1.5,2,3t |
140 |
77.5 |
24 |
66 |
M24 |
Φ58 |
| 4,5t |
170 |
91 |
28.5 |
83 |
M30 |
Φ70 |
| 6,7t |
230 |
96.5 |
39 |
112 |
M36 |
Φ75 |
| 8,10t |
230 |
101.5 |
39 |
112 |
M42 |
Φ80 |
| 12t |
245 |
106 |
58.5 |
118 |
M42 |
Φ84 |
| 15t |
245 |
113 |
60 |
115 |
M42 |
Φ91 |
| 20t |
245 |
133 |
51.5 |
132 |
M52 |
Φ110 |
| 25,30t |
245 |
141 |
52.5 |
130 |
M60×4 |
Φ96 |
|
| |
|
Techincal Parameter
|
| |
| SEnsitivity |
2.00～2.50mv/v |
| Non linearity |
±0.02～±0.05%FS |
| Hysteresis |
±0.02～±0.05%FS |
| Repeatability |
0.02～0.03%FS |
| Creep |
±0.02～±0.05%FS/30min |
| Creep recovery |
±0.02～±0.05%FS/30min |
| Zero balance |
2%FS |
| Zero temperature coefficient |
0.02～0.05%FS/10℃ |
| Rated output temperature coefficient |
0.02～0.05%FS/10℃ |
| Output resistance |
350Ω |
| Insulation resistance |
≥3000MΩ |
| Supply Voltage |
5～15V |
| Safe temperature range |
-30～+60℃ |
| Safe overload |
130%FS |
| Method of connecting wire |
input：Red(+)Yellow(-)
output：Blue(+)White(-) |
|
|
|
|
