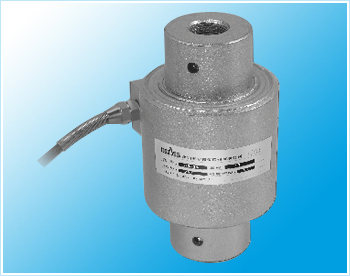

CS-24 Type Load Cell
|
| |
Materials：Stainless steel
|
| |
|
Function Characteristics
|
Elastic part is of plate ring or double hole structure that are popular worldwide nowadays.
Load-connection is effected with internal and external threads, resulting in good resistivity to deviation and laterality, high accuracy and stable performance.
Used for electronic scale hopper scale belt scale with different weighing capacities as well as dynamometric apparatuses. Easy to install and put into use.
|
| |
|

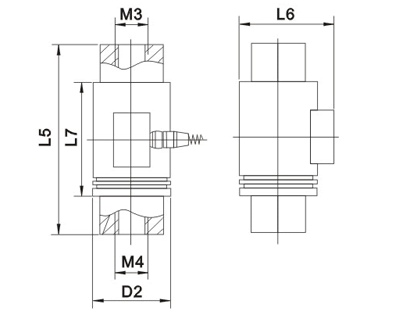

configuration：
|
| Rated Load |
L5 |
L6 |
L7 |
M=M4 |
D2 |
30,50,70,100
150,200,300,400kg |
100 |
101.5 |
69 |
M16×1.5 |
Φ85 |
| 0.5,0.7t,1t |
95 |
77.5 |
61 |
M16×1.5 |
Φ58 |
| 1.5,2t |
105 |
77.5 |
66 |
M24×1.5 |
Φ58 |
| 3,4t |
125 |
91 |
83 |
M24×1.5 |
Φ70 |
| 5,6,7t |
150 |
101.5 |
112 |
M24×1.5 |
Φ80 |
| 10,15,20t |
160 |
113 |
104 |
M36×3 |
Φ91 |
Size:mm |
| |
|
Techincal Parameter
|
| |
| Sensitivity |
2.00～2.50mv/v |
| Non linearty |
±0.02～±0.05%FS |
| Hysteresis |
±0.02～±0.05%FS |
| Repeatability |
0.02～0.03%FS |
| Creep |
±0.02～±0.05%FS/30min |
| Creep recovery |
±0.02～±0.05%FS/30min |
| Zero balance |
2%FS |
| Zero temperature coefficient |
0.02～0.05%FS/10℃ |
| Rated output temperature coefficient |
0.02～0.05%FS/10℃ |
| Output resistance |
350Ω |
| Insulation rasistance |
≥3000MΩ |
| Supply Voltage |
5～15V |
| Safe temperature range |
-30～+60℃ |
| Safe overload |
130%FS |
| Method of connecting wire |
输入input：红Red(+)黄Yellow(-)
输出output：兰Blue(+)白White(-) |
|
|
|
|
