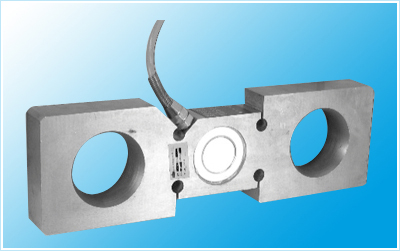

Materials：Tool Steel　　　

Excellent sealing property.

Curved sectioned ring connection allows installation at ease.

Good for the hopper weigher and the over- load alarm device on the elevators.

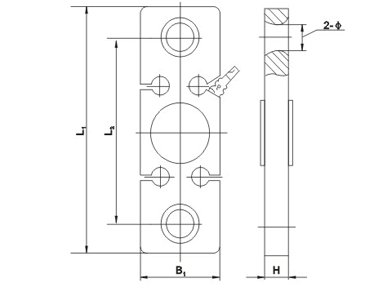

Rated Load\Size(mm)	1t	2t	3,4t	5,6t	8t	10t	15t
L1	156	195	235	280	300	320	400
L2	110	135	150	180	195	210	240
B1	38	60	68	85	92	96	120
H	13	20	28	30	30	34	34
Φ	22	27	38	48	58	58	60



Sensitivity	2.00～2.50mv/v
Non linearity	±0.03～±0.05%FS
Hysteresis	±0.03～±0.05%FS
Repeatability	0.02～0.03%FS
Creep	±0.03～±0.05%FS/30min
Creep recovery	±0.03～±0.05%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS/10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
