With excellent sealability.

Apply to various cold and hot milling roll.

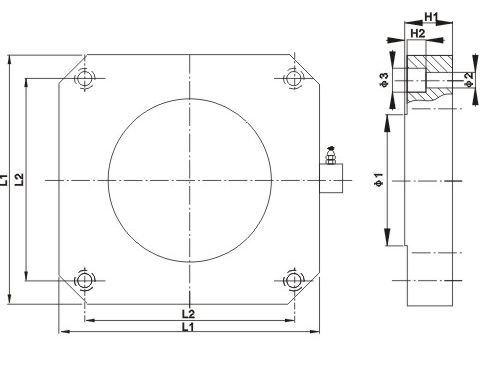

Rated Load\Size(mm)	L1	L2	H1	H2	Φ1	Φ2	Φ3
50t～150t	290	220	60	26	150	22	32
200t～450t	400	320	80	32	210	26	38

Sensitivity	1.00mv/v
Non linearity	±0.1～±0.3%FS
Hysteresis	±0.1～±0.3%FS
Repeatability	0.1～0.3%FS
Creep	±0.1～±0.3%FS/30min
Creep recovery	±0.1～±0.3%FS/30min
Zero balance	2%FS
Zero temperature coefficient	0.1～0.3%FS/10℃
Rated output temperature coefficient	0.1～0.3%FS/10℃
Output resistance	700Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
