Materials：Tool Steel

Cantilever beam structure, multi-kind loading forms for choice,

Low elevation, robust structure, good resistivity to fatigue and load laterality.

Especially good for electronic belt scale,hopper scale, platform scale and ground weigher,

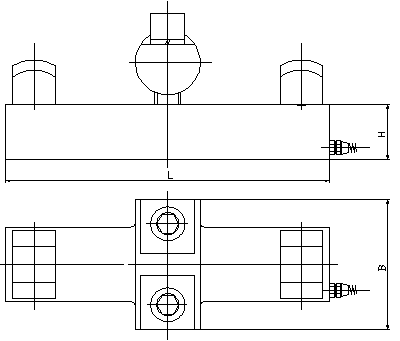

Rated Load\Size	L	B	H
1,2t	150	50	36
3,5t	200	80	40
10t	240	90	46
15t	260	100	50

Sensitivity	2mv/v
Non linearity	1%FS
Hysteresis	1%FS
Repeatability	0.3%FS
Creep	±0.02～±0.05%FS/30min
Creep recovery	±0.02～±0.05%FS/30min
Zero baiance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS/10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
