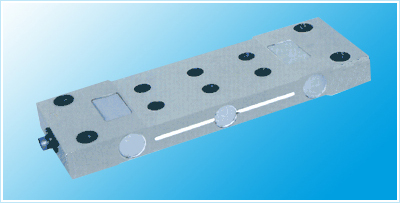

Materials：Tool Steel

Cantilever beam structure, multi-kind loading forms for choice,

Low elevation, robust structure, good resistivity to fatigue and load laterality.

Especially good for electronic belt scale,hopper scale, platform scale and ground weigher,

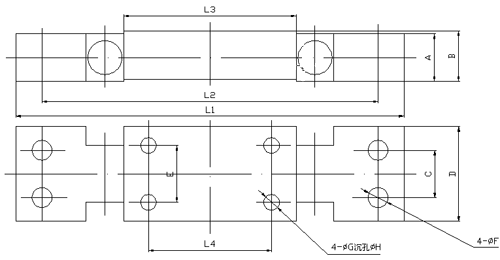

量程\尺寸	L1	L2	L3	L4	A	B	C	D	E	F	G	H
1.5-2.5t	410	355	182	130	46	56	50	100	40	21	17	26
4-8t	410	355	212	160	46	56	50	100	40	21	17	26

Sensitivity	1.5～2.0mv/v
Non linearity	0.02～±0.05%FS
Hysteresis	0.02～±0.05%FS
Repeatability	0.02～0.03%FS
Creep	±0.02～±0.05%FS/30min
Creep recovery	±0.02～±0.05%FS/30min
Zero baiance	2%FS
Zero temperature coefficient	0.03～0.05%FS/10℃
Rated output temperature coefficient	0.03～0.05%FS/10℃
Output resistance	350Ω
Insulation resistance	≥3000MΩ
Supply Voltage	5～15V
Safe temperature range	-30～+60℃
Safe overload	130%FS
Method of connecting wire	输入input：红Red(+)黄Yellow(-) 输出output：兰Blue(+)白White(-)
